The All New Escarpe - We've taken everything we loved about our Escarpe platform and made it better. Quick up the hills and even quicker going back down. A true confidence inspiring all mountain trail bike.

Our all new Escarpe features a redesigned carbon front triangle paired with an aluminium rear end. With revamped geometry and improved suspension kinematics to ensure the Escarpe climbs efficiently on the way up and descends with playful confidence on the way back down, our all new Escarpe will take your riding to the next level. We straightened the leverage curve and increased the progressivity to improve the small bump sensitivity, mid stroke support to keep you in control when the trails get rough. Along with improved geometry the new Escarpe also has improved seat post insertion which allows for a longer dropper post to be fitted as standard ensuring you get the most comfortable riding position on the way up and back down. Basically our all new Escarpe is better in every way. If you want a confidence inspiring all mountain bike that can climb as well as a trail bike and descend like an enduro bike, then our Escarpe is for you.

Out of the box our Escarpe 29 CRS is ready to hit your trail of choice. The 29 CRS comes with 140mm of frame travel, matched with buttery smooth 150mm Rockshox Pike forks and a Rockshox Delux Select+ rear shock to keep you planted when the trails get rough. Shimano's 1x12 wide range SLX drivetrain provides reliable shifting for all day epics while the Shimano SLX brakes provide ample stopping power.

Rolling on the high performance DT Swiss M1900 wheels and a Maxxis Assegai / Dissector tubeless ready tyre combo to provide the right balance of grip and speed. Finished with Nukeproof components and a Brand-X Ascend dropper post you’ll have the confidence take your trail riding to the next level with our Escarpe 29 CRS.

T700 Carbon Front Triangle with 6061-T6 Aluminium Rear Triangle

Rockshox Pike Select 150mm/Rockshox Deluxe Select+ Suspension

Shimano 1x12spd M7100 SLX Drivetrain

DT Swiss M1900 Wheels

Maxxis Assegai/Dissector Tyres

Brand-X Ascend Dropper Post

All New Carbon Escarpe Updated modern geometry with adjustable flip chip, improved suspension kinematicws and a smile inducing ride.

Frame Material T700 Carbon/6061-T6 Aluminium

Suspension Travel  150mm Front, 140mm Rear

Wheel Size 29

Available Size S,M,L,XL

Colour BURNT RED

Weight: Medium: 14.82kg (Tubeless setup)



Specifications

FRAMEEscarpe T700 carbon front triangle, alloy 6061 rear Internal cable routing, post mount disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle	REAR HUB DT Swiss M1900 12x148mm, 6 bolt, microspline
FORKSRockShox Pike Select 29” Charger RC damper, DebonAir, 35mm stanchions, 150mm travel, 110mm x 15mm MaxleStealth axle 37mm offset	SPOKESDT Swiss   N/A
SHOCKRockShox Deluxe Select+ DebonAir, 205mm x 60mm, trunnion	FRONT TYREMaxxis Assegai  3C MaxxTerra compound, EXO/TR, 29” x 2.50”
CHAINSETShimano SLX M7100 30t, 170mm	REAR TYREMaxxis Dissector 3C MaxxTerra compound, EXO/TR, 29” x 2.40”

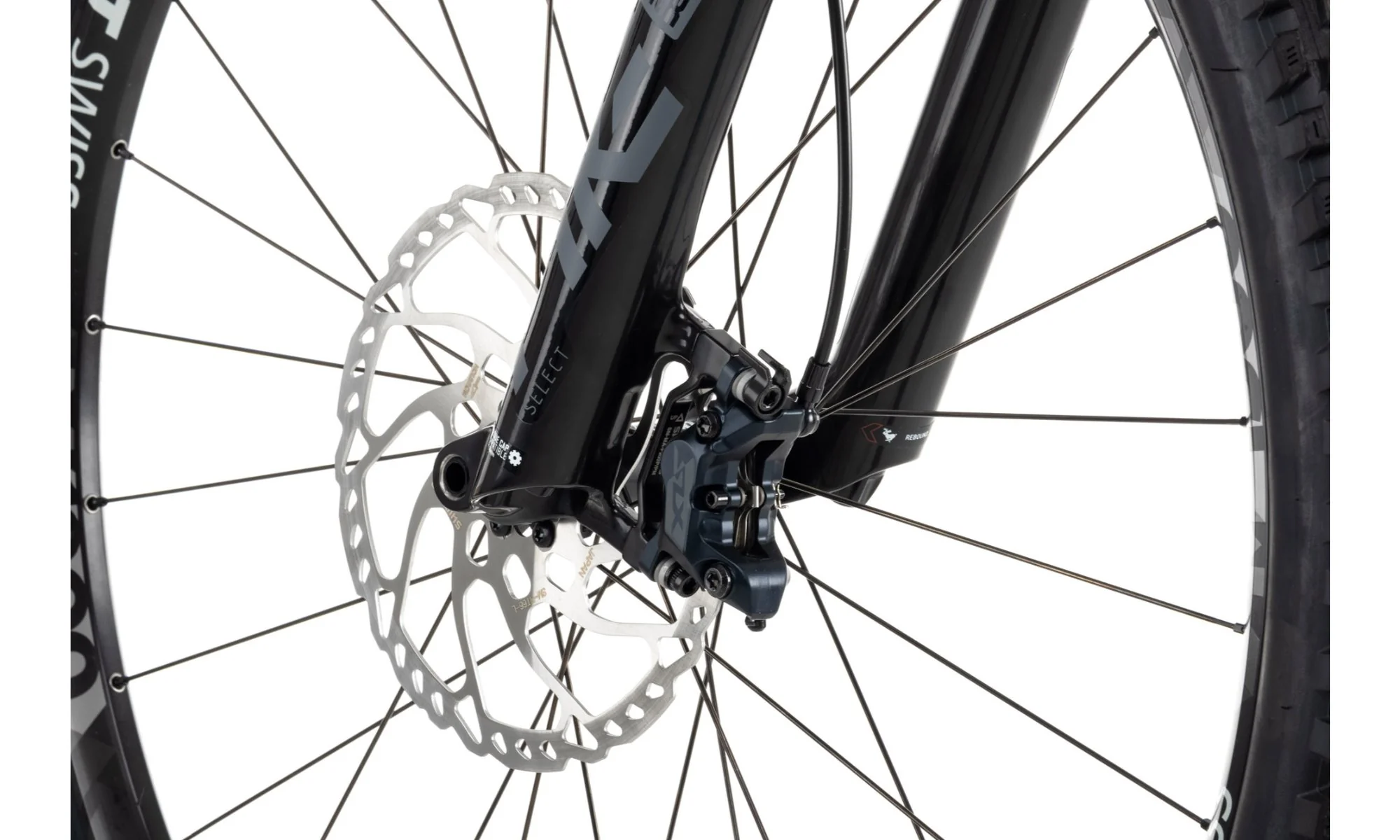

BOTTOM BRACKETShimano SM-BB52, BSA  73mm BSA Threaded	BRAKESShimano SLX MT7120 N/A
FRONT DERAILLEURN/A N/A	BRAKE ROTORSShimano SM-RT66 203mm front / 180mm rear, 6 bolt

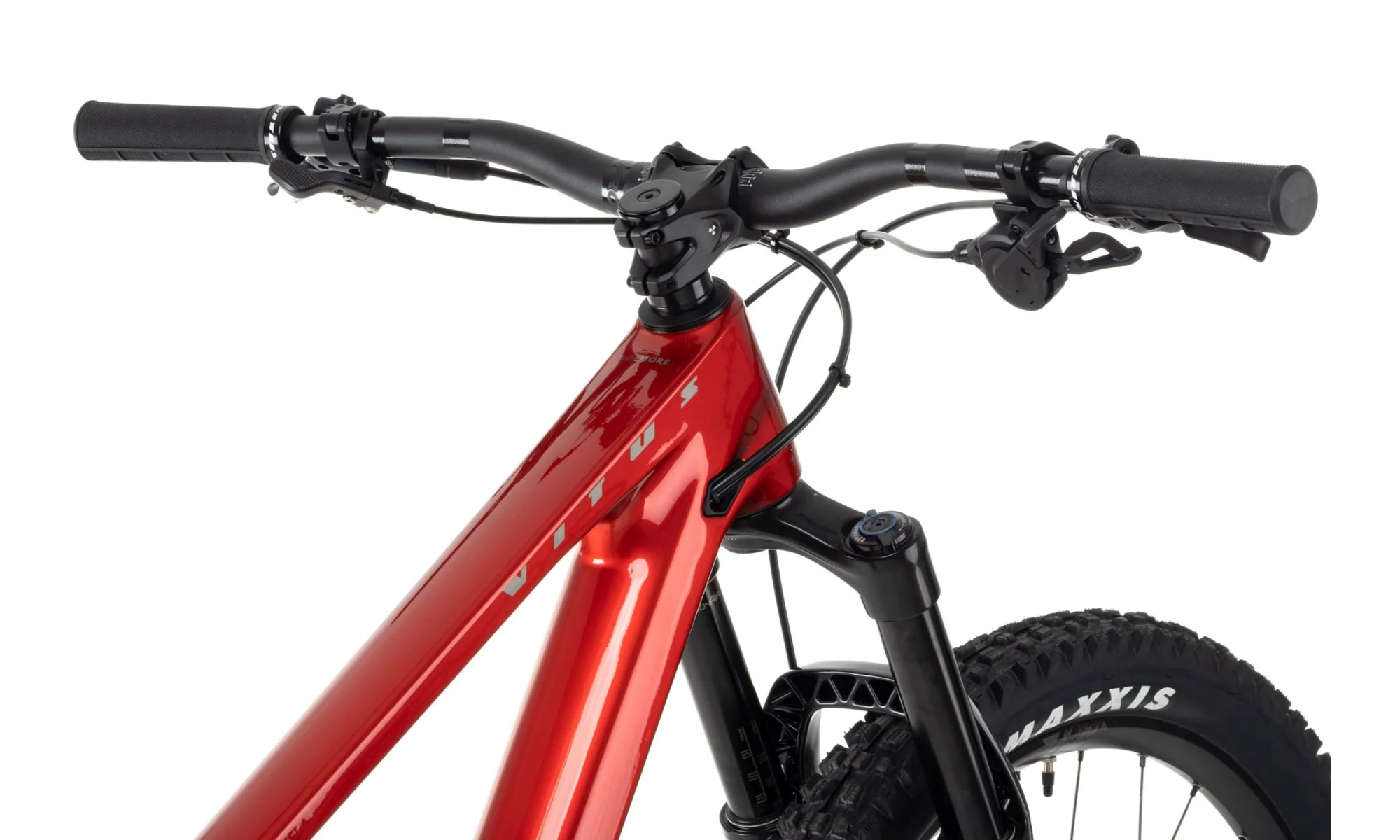

REAR DERAILLEURShimano SLX M7100 Shadow plus, long cage, 12 speed	HANDLEBARSNukeproof Horizon riser   Alloy 7050, 25mm rise,  9° back sweep, 760mm wide S/M, 780mm wide L/XL
SHIFTERSShimano SLX M7100   Rapidfire plus, 12 speed	STEMNukeproof Neutron   Alloy 6061, 45mm reach, 0° rise
CASSETTEShimano SLX M7100 10t-51t, 12 speed	HEADSETAcros AZX-212-CO R5   Sealed bearings, OD44, 44/28.6 – 56/40
CHAINShimano SLX M7100   12 speed	GRIPSVitus lock on   N/A
FRONT RIMDT Swiss M 1900    SPLINE 6 Bolt Black Front, 15x110mm, 29"	SADDLENukeproof Neutron   N/A
REAR RIMDT Swiss M 1900     SPLINE 6 Bolt Black, 12x148mm, 29" Shimano Microspline Driver Body	SEATPOSTBrand-X Ascend dropper   Remote lever, 31.6mm,  S 125mm drop/M 150mm drop/L,XL 170mm drop
FRONT HUB DT Swiss M1900   15x110mm, 6 bolt	SEATCLAMPVitus bolt, 36.4mm   N/A
